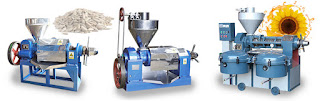

ABC Machinery Automatic Oil Press

ABC Machinery fully automatic oil press can adjust the suitable temperature for different raw materials, with automatic temperature control system, easy to operate, simplify the complexity of frying. The reason why the full-automatic corn oil machine is called full-automatic means that except for feeding, it basically does not need other operations, automatic temperature control, vacuum filtration, simple operation, small footprint, high oil yield. Based on the technology imported from South Korea by ABC Machinery, through temperature control, the actual oil yield can be increased by 10-30%. The fully automatic cottonseed oil processing machine has advanced design, reliable performance, simple operation and convenient maintenance. It has the characteristics of energy saving, high oil yield, labor saving, wide use, pure oil quality and small footprint. A new type of fully automatic oil press developed by ABC Machinery can be used for multi-planting oil such as mustard seed, cottonseed, soybean, peanut kernel, tung seed, sunflower seed and so on.

Type no.	6YL-60	6YL-70	6YL-80	6YL-100	6YL-120	6YL-150
Spiral diameter	φ 53mm	φ 68mm	φ 80mm	φ 100mm	φ 120mm	φ 150mm
Screw rotation speed	64r/min	64r/min	63r/min	43r/min	36r/min	33r/min
Power	2.2kw	3kw	5.5kw	7.5kw	11kw	15kw
Vacuum pump	0.37kw	0.37kw	0.55kw	0.75kw	0.75kw	1.1kw
The heater	0.9kw	1.8kw	3kw	3.5kw	4kw	4kw
processing	30-60Kg/h	40-70Kg/h	80-150Kg/h	150-250Kg/h	250-350Kg/h	300-450Kg/h
The weight	240Kg	280Kg	830Kg	1100Kg	1500Kg	1950Kg
Overall dimensions	1200x480x1100	1400x500x1200	1650x1440x1700	1960x1630x1900	2100x1680x1900	2380x1850x2000


Working Principle of ABC Machinery Automatic Oil Press
When the fully automatic oil press is in operation, the processed oil enters the press chamber from the hopper. The rotation of the squeezing screw makes the embryo continuously push inward for squeezing. Because the embryo is carried out in the state of motion in the press chamber of the oil press, under the condition of high pressure in the press chamber, there is a great frictional resistance between the embryo and the snail, the embryo and the press chamber. It can cause friction between the micro-materials of the embryo and cause relative motion. On the other hand, because the root diameter of the snail is gradually thickened and the pitch is gradually reduced, when the snail is rotated, the thread force can be pushed forward and turned outward, and close to the screw thread. The material layer on the surface also rotates with the press shaft. In this way, each embryo particle in the press chamber does not move at the same speed and in the same direction, but there is relative motion between the particles. The heat generated by friction satisfies the heat necessary for the operation of the oil extraction process, which helps promote the thermal denaturation of the protein in the embryo, destroys the colloid, increases the plasticity, and also reduces some of the viscosity, which is easy to precipitate oil, so The oil extraction rate of the oil press is improved, so that the oil in the material is pressed out, and flows out from the garden row gap and the row gap.
We not only provide small oil press but also complete sets of edible oil plant, oil press production line design, plant construction, essential oil extraction equipment.
